Jackery Explorer 5000 Plus Portable Power Station

The Jackery Explorer 5000 Plus is a whole-home backup power system built for serious outages, off-grid living, and high-demand energy independence. Starting at 5040Wh of LiFePO4 battery capacity and expandable to 60kWh, the Explorer 5000 Plus delivers 7200W of continuous split-phase output, supports up to 4000W of solar input, and integrates with the Jackery Smart Transfer Switch for seamless whole-home backup without manual rewiring.

Engineered with Cell-to-Body (CTB) structural battery technology, an online UPS with 0ms switchover, and a compact rolling form factor, the Explorer 5000 Plus brings together the power output and long-term reliability of a standby home generator in a system that can be positioned, expanded, and solar-charged without permanent installation.

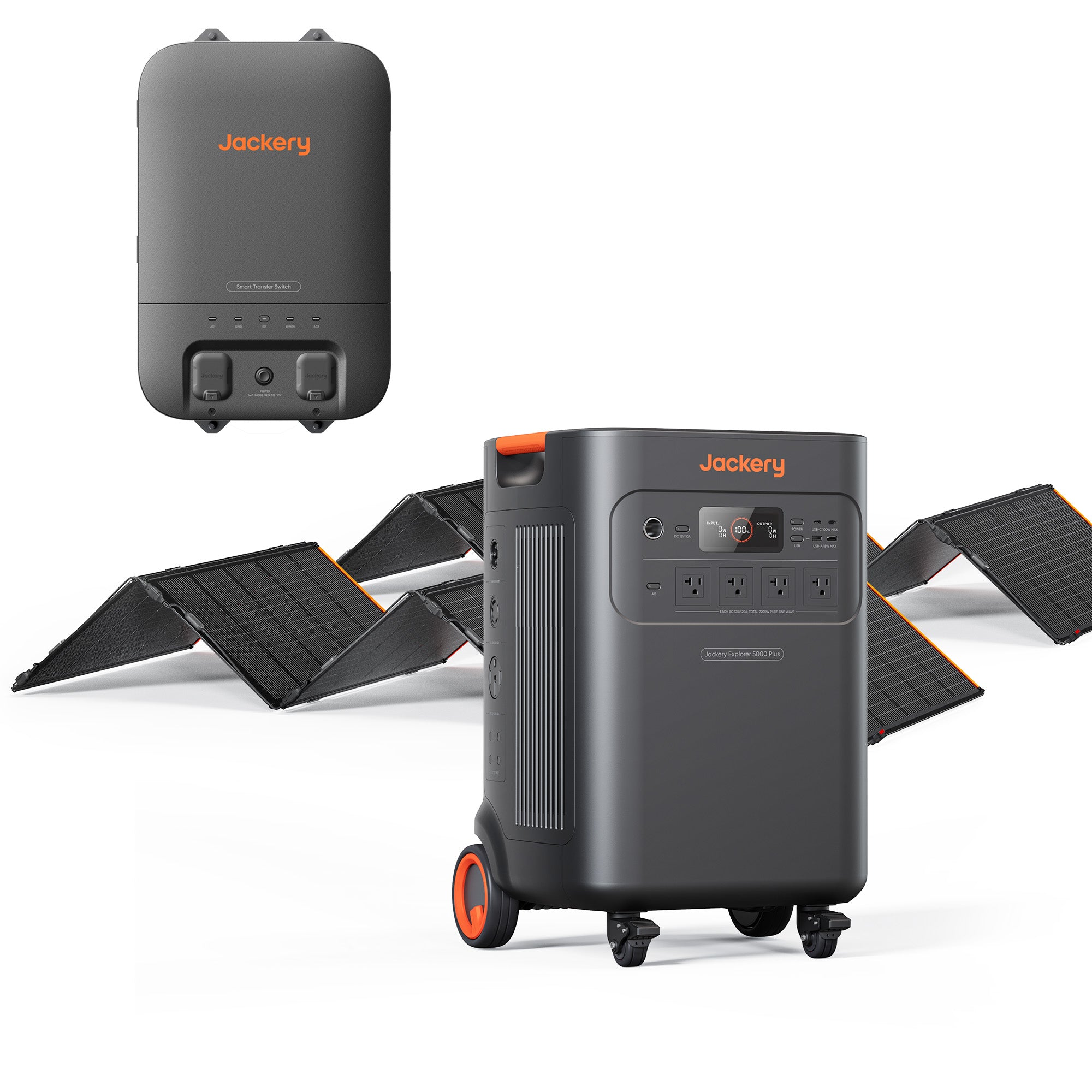

What is in this Bundle?

• Jackery E5000 Plus

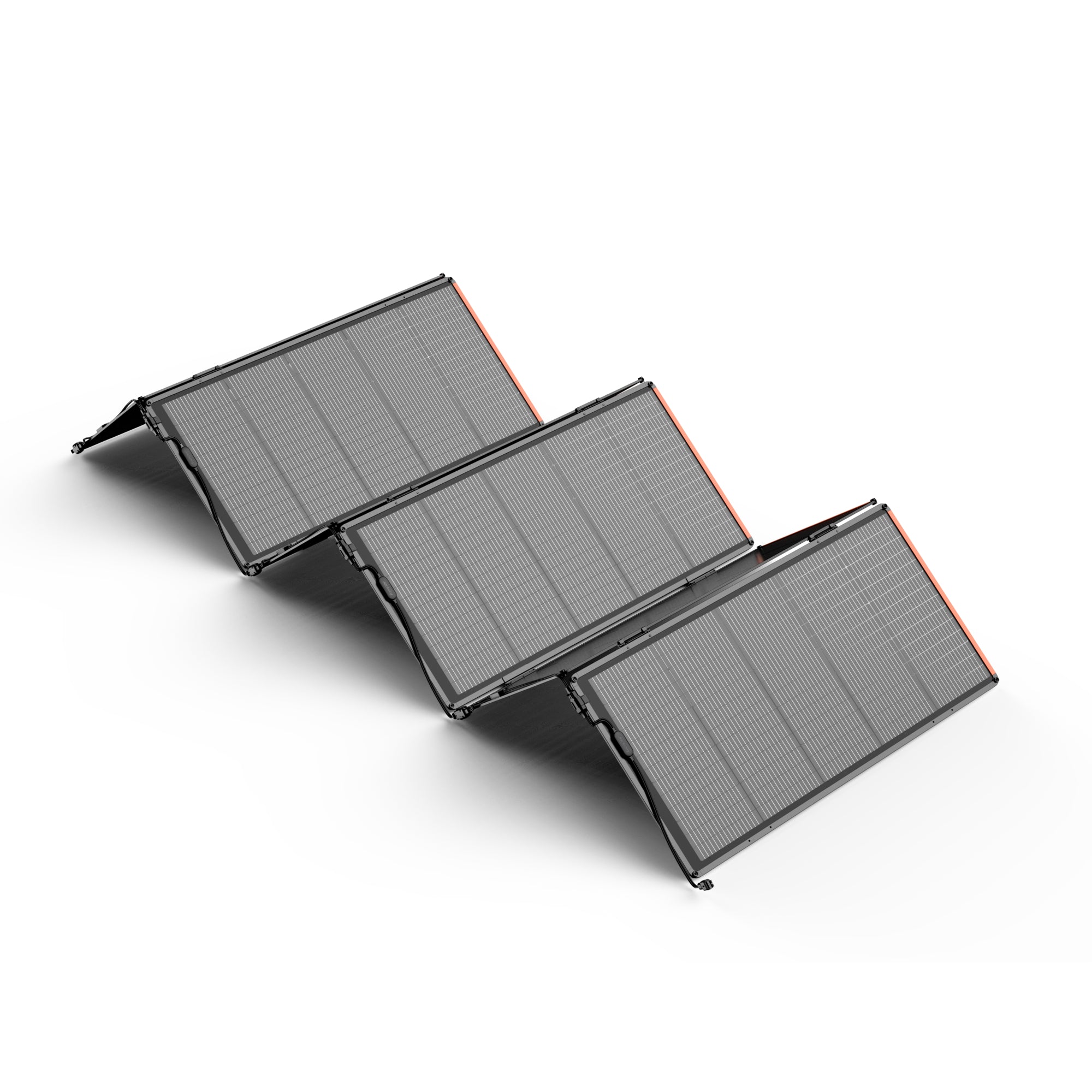

• 2x Jackery Solarsaga 500W Solar Panel

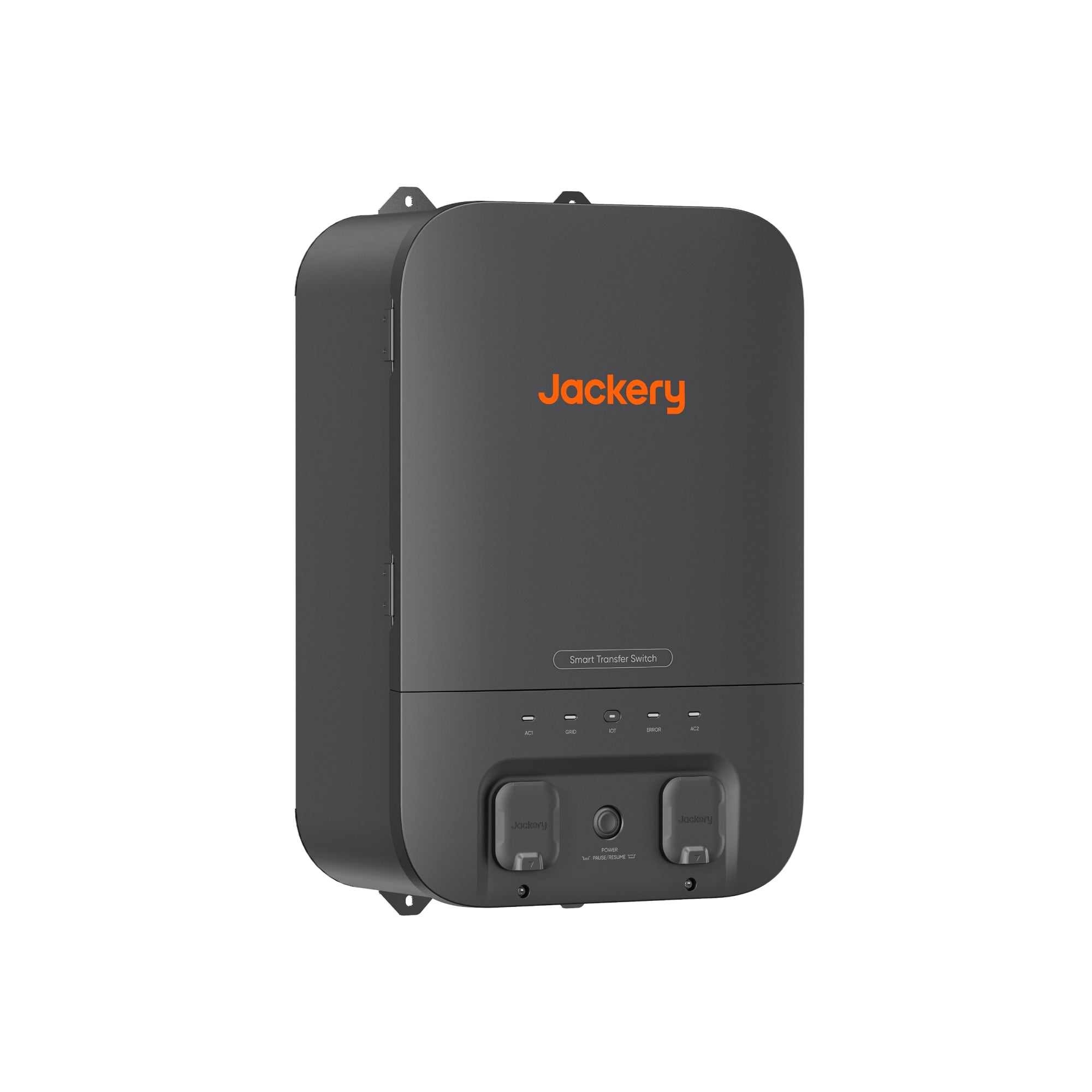

• Smart Transfer Switch

5040Wh LiFePO4 Battery, Expandable to 60kWh

Start with Days of Power. Scale to Weeks.

The Explorer 5000 Plus is built around a 5040Wh lithium iron phosphate battery pack, and its modular architecture allows capacity to be expanded in increments up to 60kWh — enough to power a home for up to 13 days on a single charge.

• 5040Wh base LiFePO4 battery capacity (45Ah / 112V DC) for sustained whole-home power

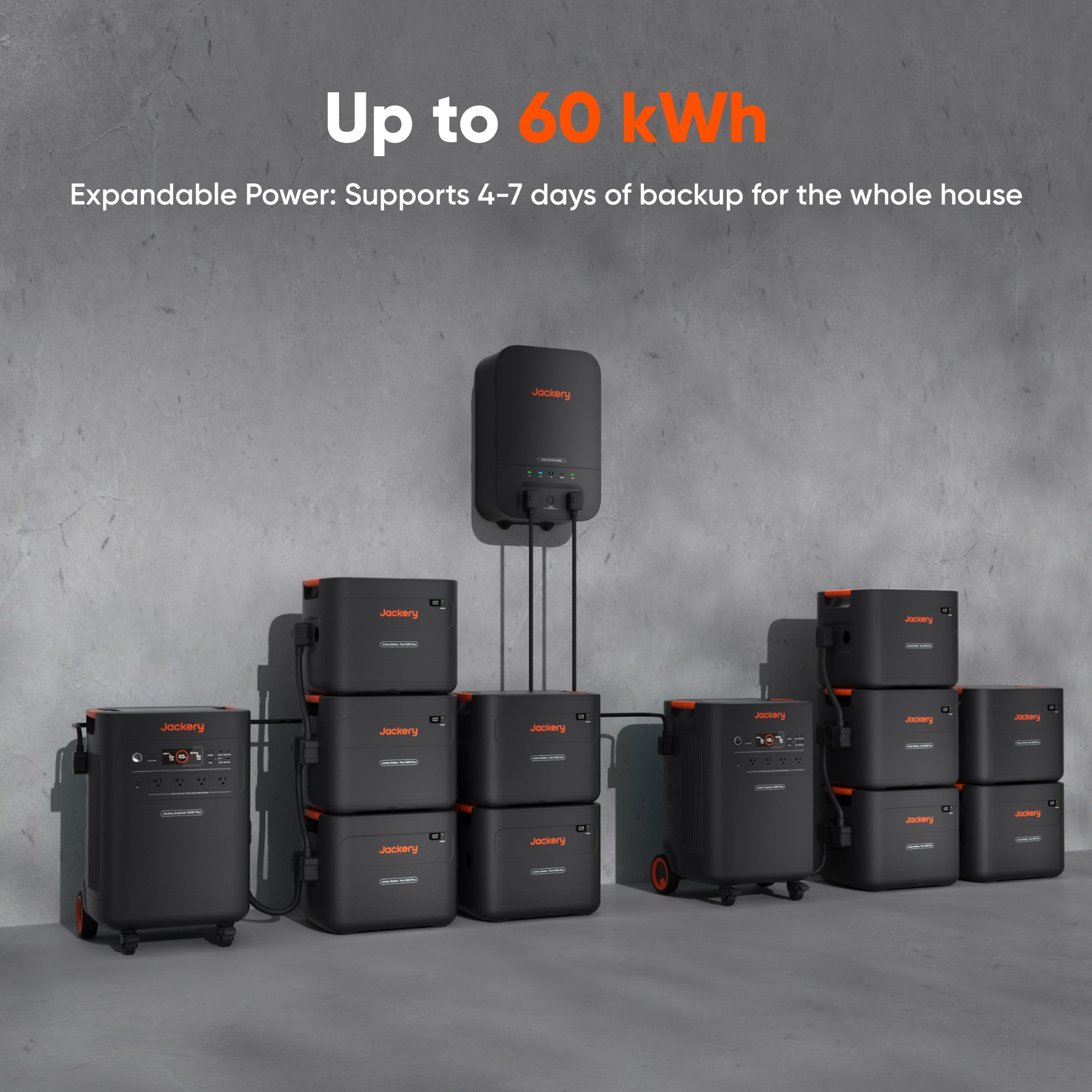

• Expandable to 60kWh by connecting up to 10 Jackery Battery Pack 5000 Plus expansion units

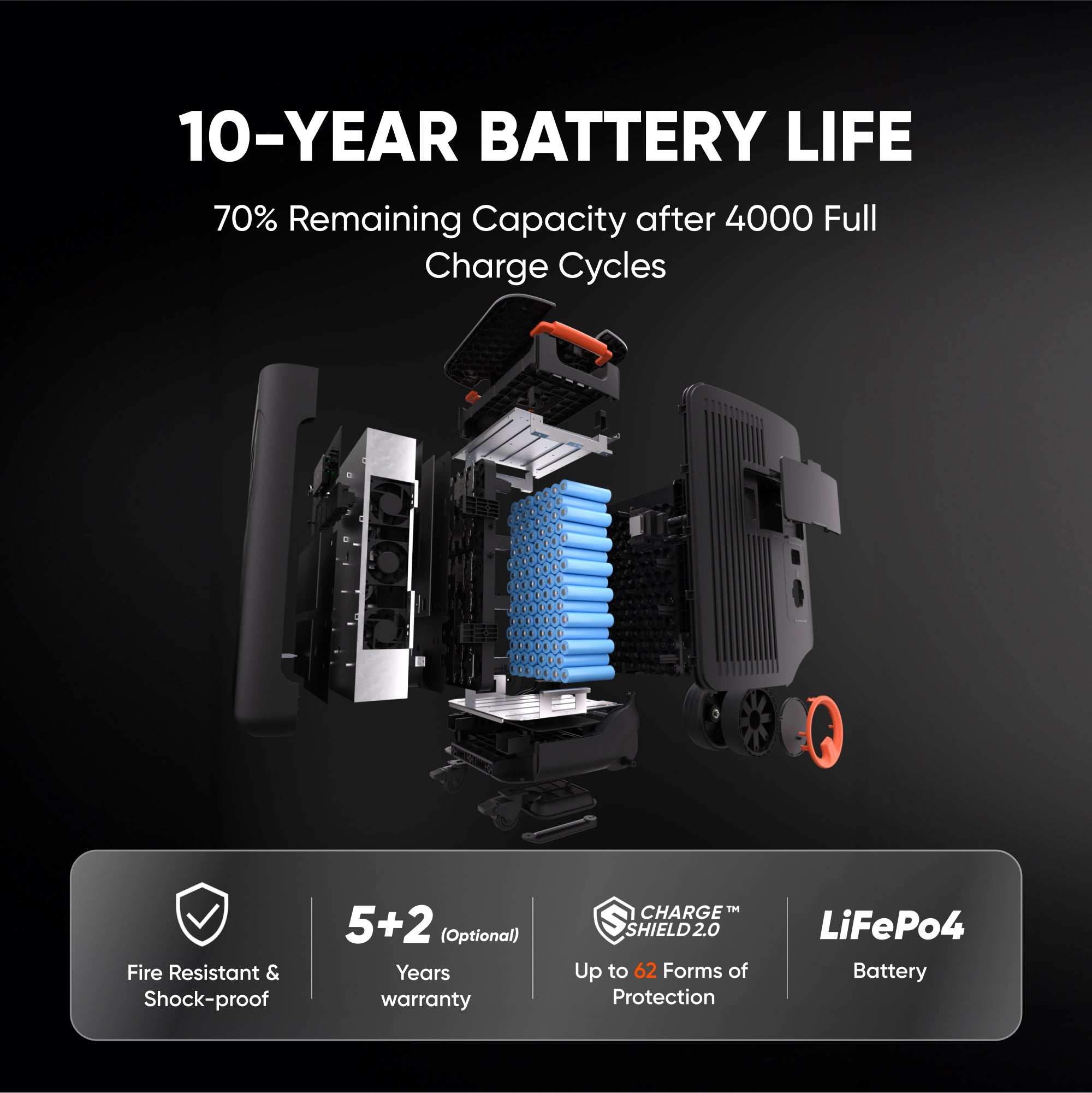

• 4,000+ charge cycles to 70% or greater capacity retention

• Battery cell lifespan of up to 11 years with regular use

• Cell-to-Body (CTB) structural integration for increased energy density and mechanical durability

• LiFePO4 chemistry provides superior thermal stability, long cycle life, and safer long-term operation compared to standard lithium-ion

LiFePO4 battery chemistry and CTB structural engineering combine to give the Explorer 5000 Plus the capacity, durability, and safety margin required for reliable whole-home power across years of regular use.

7200W Dual-Voltage Output with 14,400W Surge

120V and 240V Power for Every Appliance in Your Home

The Explorer 5000 Plus delivers 7200W of continuous pure sine wave output across both 120V and 240V split-phase circuits, and when paired with a second Explorer 5000 Plus unit, combined output reaches 14,400W continuous — covering virtually every appliance and circuit in a standard home.

• AC Output (x4): 120V~60Hz, 20A, NEMA 5-20 outlets for standard household devices

• AC Split-Phase Output: 240V~60Hz, 7200W continuous (14,400W surge) for large appliances and HVAC

• L14-30 Twist Lock Generator Port for whole-home transfer switch and generator circuit compatibility

• USB-C Output (x2): 100W Max each for fast charging of laptops and high-powered devices

• USB-A Output (x2): 18W Max each, Quick Charge 3.0 for broad device compatibility

• Car Port (x1): 12V / 10A for 12V accessory operation

• AC Expansion Port (x1): 240V / 30A / 7,200W for multi-unit system configuration

• DC Expansion Port (x1): 80.5V / 30A for battery pack expansion connectivity

• 12 output ports total for simultaneous multi-device and multi-appliance operation

With full split-phase 240V output and 12 simultaneous output ports, the Explorer 5000 Plus supports the full electrical load of a standard home, from lighting and small electronics to central air conditioning, well pumps, and electric dryers.

Online UPS with 0ms Switchover and Smart Transfer Switch Integration

Instant, Automatic Protection the Moment the Grid Fails

The Explorer 5000 Plus operates as an online UPS, meaning its inverter is always active and connected devices experience zero interruption at the moment of a grid failure — no transfer time, no reset, no data loss.

• Online UPS mode: 0ms switchover for completely seamless transition from grid to battery power

• Always-on inverter keeps connected devices running without any detectable interruption

• Compatible with the Jackery Smart Transfer Switch for whole-home automatic backup without manual rewiring

• Protects computers, medical equipment, network infrastructure, and sensitive electronics from power disruptions

• Reserve UPS mode also available for reduced standby power consumption with sub-20ms switchover

The Explorer 5000 Plus's online UPS architecture ensures that even the most sensitive electronics, from CPAP machines to home servers, continue operating without interruption at the moment grid power is lost.

4000W Solar Input and Fast Recharge

Rapid Solar Recharging for True Energy Independence

The Explorer 5000 Plus supports high-wattage solar input across both high-voltage and low-voltage configurations, enabling fast solar recharging from a full array of Jackery SolarSaga panels and a variety of third-party photovoltaic systems.

• High-voltage solar input: Up to 4000W Max at 135-450V DC for full recharge in as little as 1.7 hours

• Low-voltage solar input: Up to 1200W Max at under 60V DC for standard panel compatibility

• AC wall input: 1800W Max for grid-connected recharging

• Supports simultaneous multi-source input for maximum recharge speed and flexibility

• Compatible with Jackery SolarSaga solar panels including the SolarSaga 500X and SolarSaga 200W

• High-voltage PV input enables full recharge of the 5040Wh battery in approximately 1.7 hours under optimal solar conditions

The 4000W high-voltage solar input capability makes the Explorer 5000 Plus one of the fastest solar-rechargeable portable power systems available, enabling true energy independence for homes, cabins, and off-grid properties.

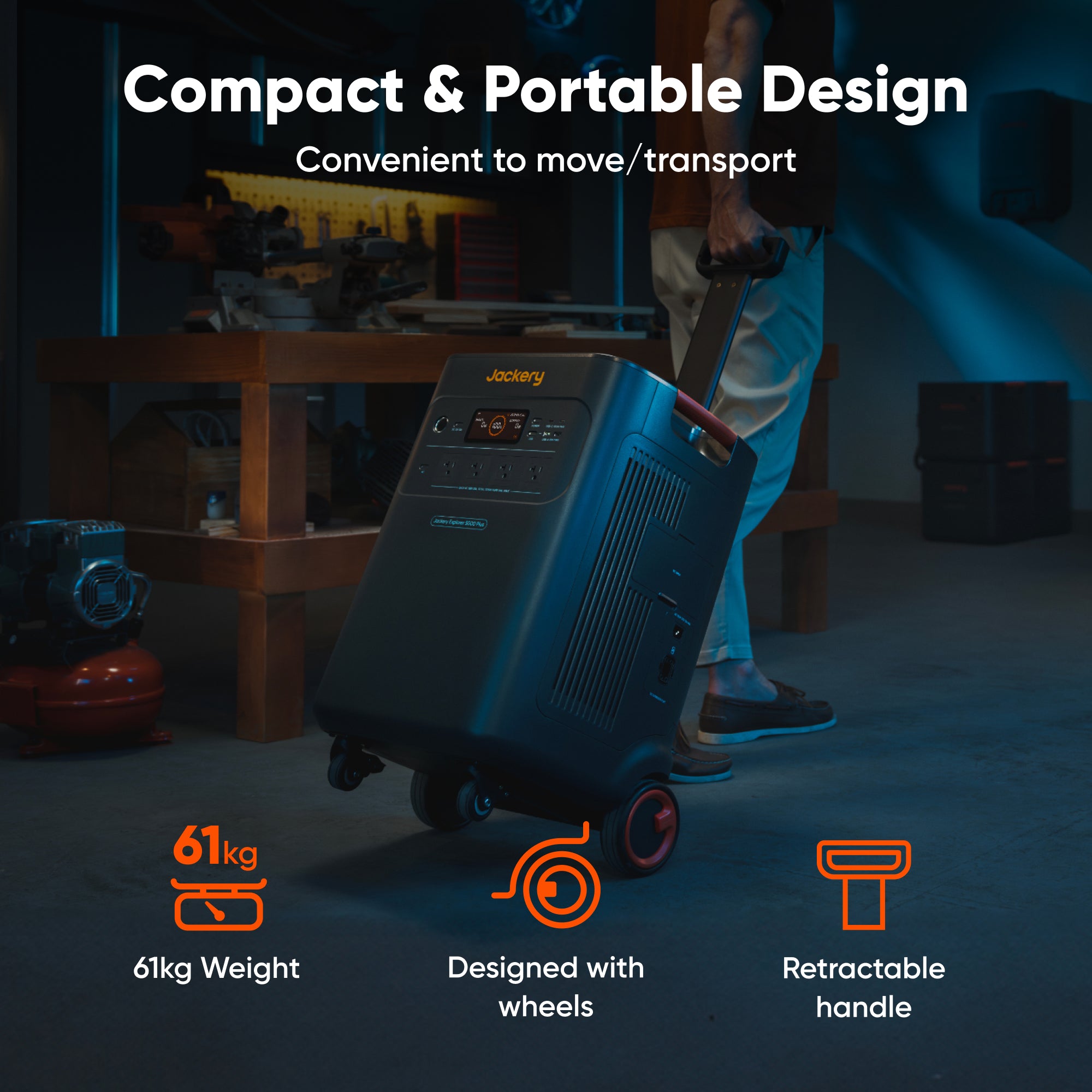

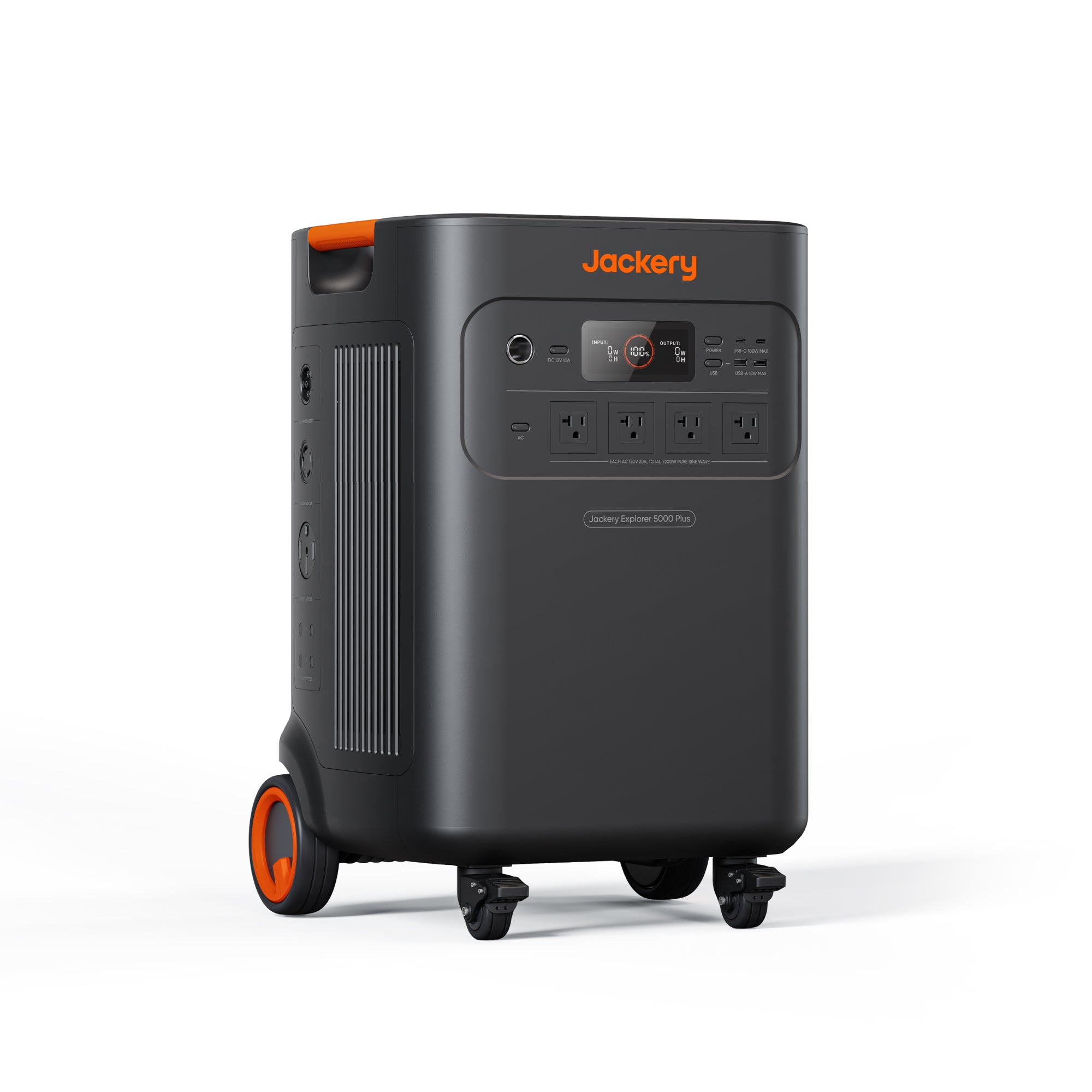

Portable Whole-Home Form Factor with Built-In Rolling Mobility

Home Backup Power That Goes Where It Is Needed

Unlike fixed standby generators, the Explorer 5000 Plus is designed to be repositioned, stored, and deployed as needed, with integrated mobility features that make it practical for a single person to move.

• Rolling wheel base for easy repositioning across floors and outdoor surfaces

• Heavy-duty telescoping carry handle for one-person maneuverability

• Side carry handles for two-person team lifting

• Compact upright form factor: 25 x 15.5 x 16.5 in (63.5 x 39.4 x 41.9 cm)

• Weight: approximately 134.5 lbs (61 kg) for a 5040Wh whole-home backup system

• Durable impact-resistant housing with integrated display panel

• Orange and black colorway with clearly labeled ports and controls

The Explorer 5000 Plus delivers whole-home backup power capability in a form factor that requires no permanent installation, no electrician for basic operation, and no fixed location — making serious energy resilience accessible to any home.

Ideal Applications

Whole-Home Backup and Off-Grid Power for Every Scenario

The Explorer 5000 Plus is engineered for homeowners, property owners, and outdoor professionals who require large-scale, reliable power across extended outages and demanding energy scenarios.

• Whole-home emergency backup for extended power outages and storm preparedness

• Off-grid cabin, remote property, and tiny home primary power supply

• Essential appliance backup: HVAC, refrigerators, medical devices, well pumps

• Home office and medical equipment UPS protection

• RV, mobile home, and large vehicle power supply

• Construction sites and remote professional work locations

• Outdoor events and large-scale recreational power

• Long-term energy independence with solar recharging

Key Features

• 5040Wh LiFePO4 battery capacity, expandable to 60kWh

• 7200W continuous split-phase output (14,400W with two units)

• 120V and 240V dual-voltage output

• 4,000+ charge cycles to 70%+ capacity retention

• Battery cell lifespan of up to 11 years

• Cell-to-Body (CTB) structural battery technology

• Online UPS with 0ms automatic grid-to-battery switchover

• Compatible with Jackery Smart Transfer Switch

• 4000W high-voltage solar input (135-450V DC)

• Full recharge in as little as 1.7 hours via high-voltage solar

• 1200W low-voltage solar input (under 60V DC)

• 1800W AC wall input

• Four 120V NEMA 5-20 AC outlets (20A each)

• 240V split-phase and L14-30 Twist Lock Generator Port

• USB-C (x2) 100W Max each

• USB-A (x2) 18W Max each, Quick Charge 3.0

• Car Port 12V / 10A

• AC and DC expansion ports for multi-unit configuration

• 12 total output ports

• Rolling wheel base with telescoping handle

• Impact-resistant housing with integrated display

• 5-year warranty

Product Specifications

Brand: Jackery

Model: Explorer 5000 Plus

Capacity: 5040Wh (45Ah / 112V DC)

Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)

Battery Structure: Cell-to-Body (CTB)

Cycle Life: 4,000+ cycles to 70%+ capacity retention

Battery Cell Lifespan: Up to 11 Years

Total AC Output: 7200W Continuous, 14,400W Surge (Pure Sine Wave)

AC Output (x4): 120V~60Hz, 20A, NEMA 5-20

AC Split-Phase Output: 240V~60Hz, 7200W

L14-30 Generator Port: 240V, 30A Twist Lock

AC Expansion Port (x1): 240V / 30A / 7200W

DC Expansion Port (x1): 80.5V / 30A

USB-C Output (x2): 100W Max each (5V⌄3A, 9V⌄3A, 12V⌄3A, 15V⌄3A, 20V⌄5A)

USB-A Output (x2): 18W Max each (Quick Charge 3.0, 5-6V⌄3A, 6-9V⌄2A, 9-12V⌄1.5A)

Car Port Output (x1): 12V / 10A

Total Output Ports: 12

AC Input: 1800W Max

Solar Input (High-Voltage): Up to 4000W Max, 135-450V DC

Solar Input (Low-Voltage): Up to 1200W Max, Under 60V DC

Charging Time (Solar HV, 4000W): Approximately 1.7 Hours (0-100%)

UPS Mode: Online (0ms) and Reserve (Less Than 20ms)

Expandable Capacity: Up to 60kWh (with 10 x Jackery Battery Pack 5000 Plus)

Charge Temperature: 32°F to 113°F (0°C to 45°C)

Discharge Temperature: 5°F to 113°F (-15°C to 45°C)

Dimensions: 25 x 15.5 x 16.5 in (63.5 x 39.4 x 41.9 cm)

Weight: Approximately 134.5 lbs (61 kg)

Mobility: Rolling Wheels, Telescoping Handle, Side Carry Handles

Compatible Expansion Batteries: Jackery Battery Pack 5000 Plus (up to 10 units)

Compatible Solar Panels: Jackery SolarSaga Series

Compatible Accessories: Jackery Smart Transfer Switch

Application: Whole-Home Backup Power Station

Usage: Home Backup, Emergency Preparedness, Off-Grid Living, RV, Construction

Warranty: 5 Years

Condition: New
